Please note: The product image may depict a similar model from the same series.

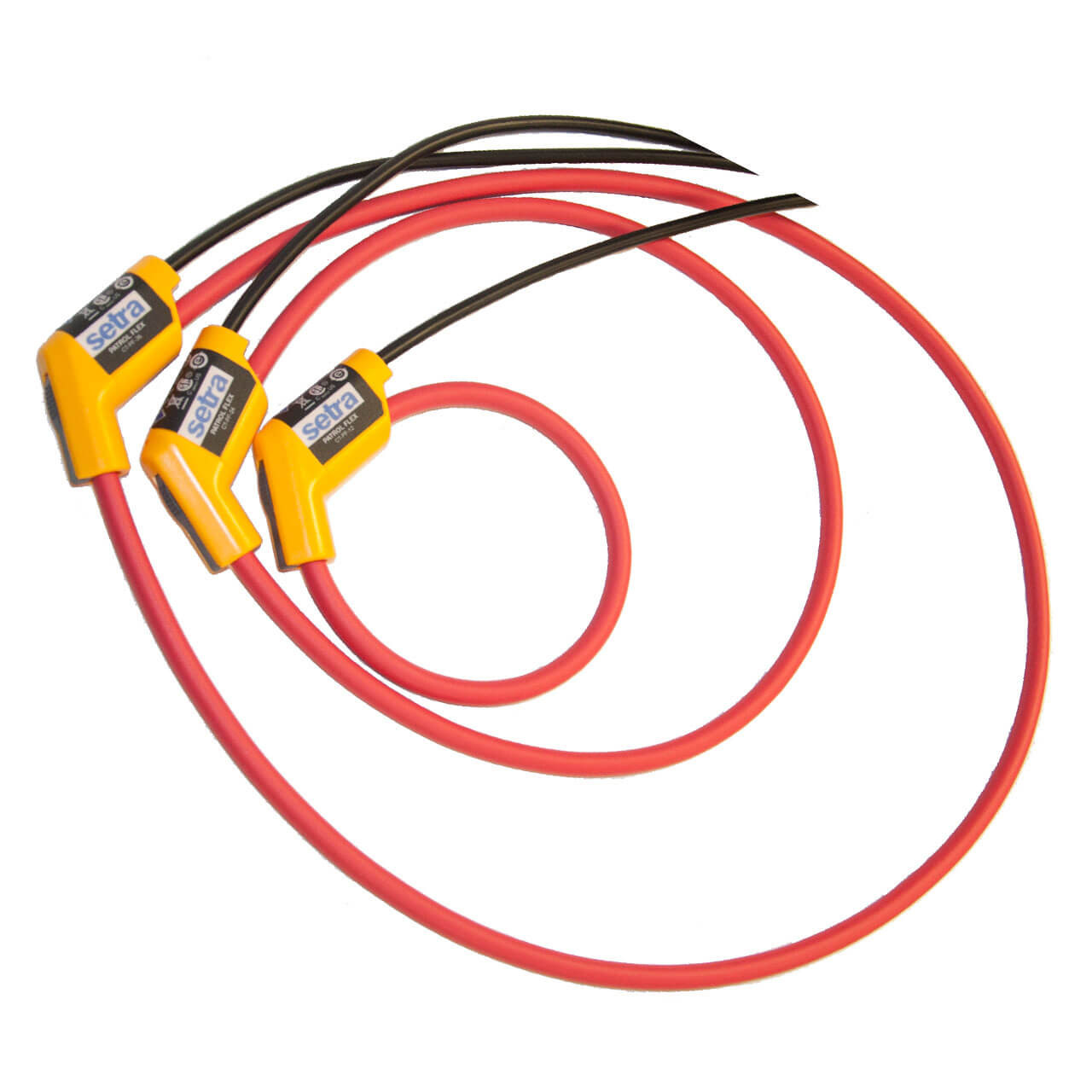

Patrol Flex Rogowski Coil
Current measurement range from 5A to 6,000A AC RMS
Revenue-grade accuracy of ±0.5% with ±0.2% linearity
Flexible, lightweight Rogowski coil design for easy installation
Lead extensions up to 300 ft with minimal accuracy impact
The CT PF Patrol Flex Rogowski Coil delivers highly accurate AC current measurement for submetering, energy management, and power monitoring applications. Available in 12\", 24\", and 36\" coil lengths, it measures currents from 5A to 6,000A while maintaining ±0.5% accuracy. Its lightweight, flexible design simplifies installation around large conductors, cable bundles, and busbars. With no external power required and lead extensions up to 300 feet, it helps reduce installation time and operating costs.
