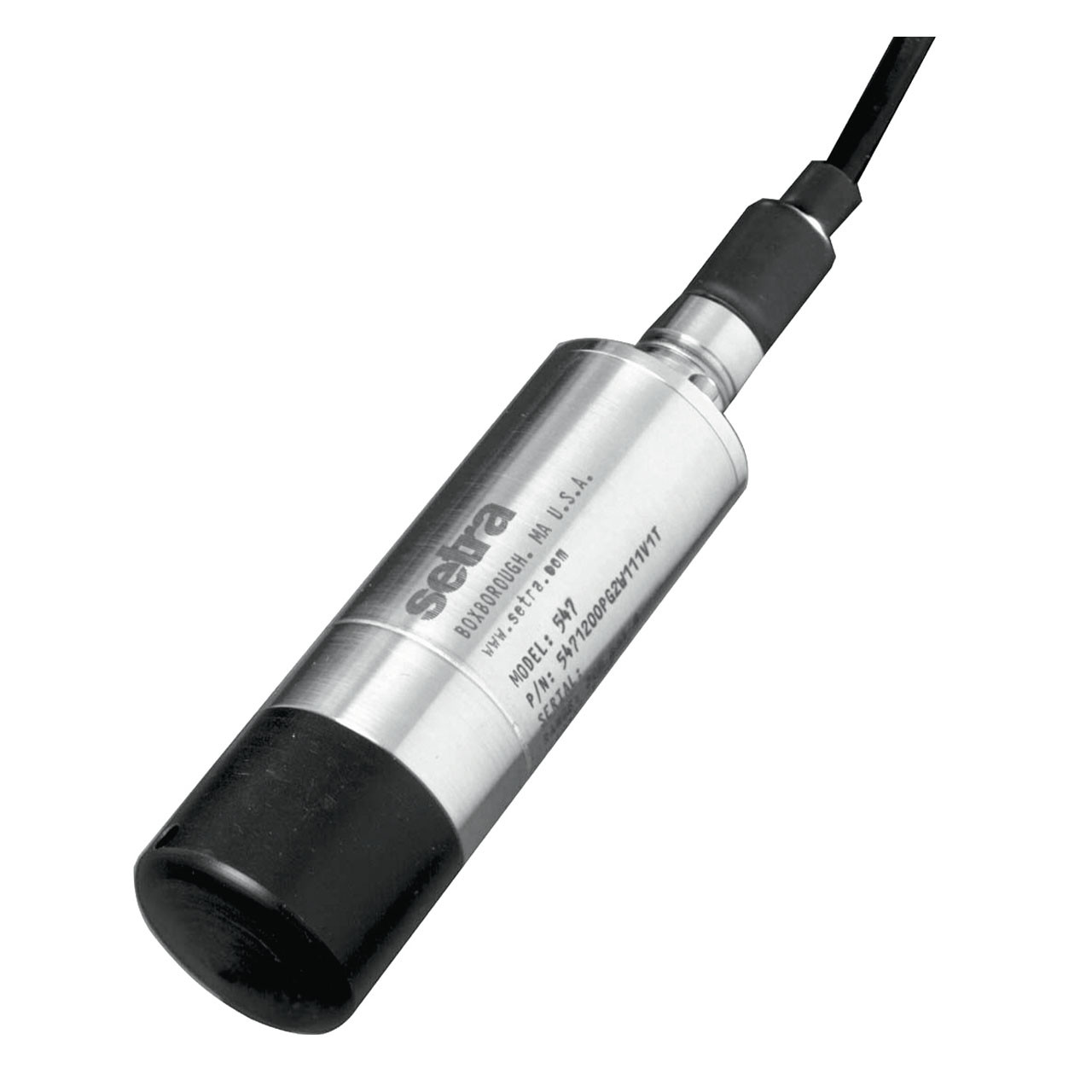

Please note: The product image may depict a similar model from the same series.
546/547 Pressure Sensors
Availability:Obsolete
Superior Stability Avoids Down Time
5:1 Range Turndown
High Overpressure Capability
IP40, IP65, and IP68 Rated
±0.1% FS High Accuracy
Intrinsic Safe Option
Sea Water Rated Option
RFI Insensitivity
The Setra Model 546/547 provide high-accuracy, rugged laboratory-style pressure measurement in industrial housings, featuring 5:1 range turndown for overpressure applications. Utilizing thin-film technology, they offer 0.1% FS accuracy, 4–20 mA output, and absolute, gauge, or sealed gauge ranges from 10 psi to 10,000 psi. Wetted parts are 17-4 PH stainless steel (Model 546) or Inconel® (Model 547), with IP40–IP68-rated enclosures. These transducers deliver reliable, maintenance-free performance in demanding industrial environments.
